Advanced Materials

Ionic-Liquid-Gating Control of Spin Reorientation Transition and Switching of Perpendicular Magnetic Anisotropy

Author Shishun Zhao

Shishun Zhao, Lei Wang, Ziyao Zhou*, Chunlei Li, Guohua Dong, Le Zhang, Bin Peng, Tai Min, Zhongqiang Hu, Jing Ma, Wei Ren, Zuo-Guang Ye, Wei Chen, Pu Yu, Ce-Wen Nan, Ming Liu*, Ionic-Liquid-Gating Control of Spin Reorientation Transition and Switching of Perpendicular Magnetic Anisotropy, Advanced Materials

Full text

Abstract

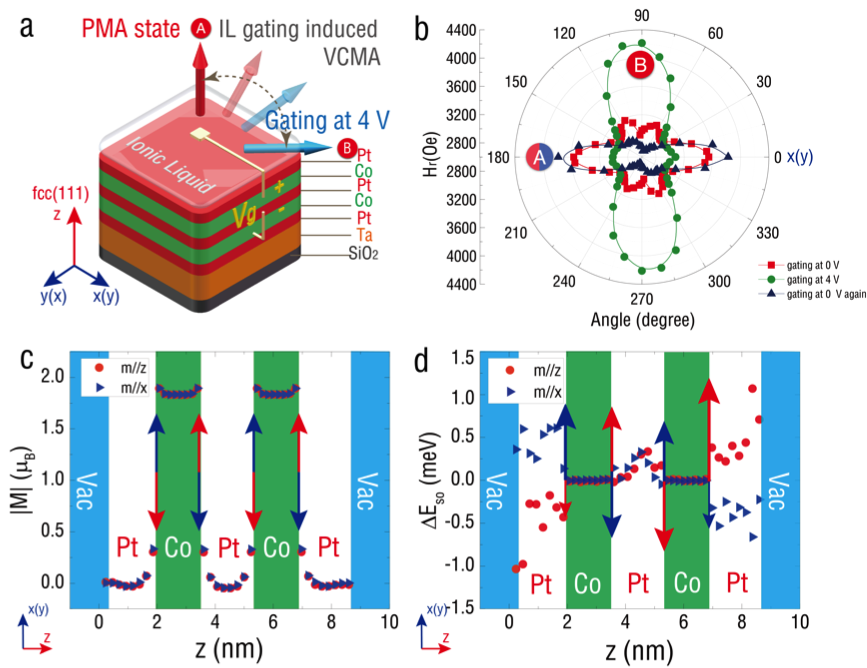

Electric field (E‐field) modulation of perpendicular magnetic anisotropy (PMA) switching, in an energy‐efficient manner, is of great potential to realize magnetoelectric (ME) memories and other ME devices. Voltage control of the spin‐reorientation transition (SRT) that allows the magnetic moment rotating between the out‐of‐plane and the in‐plane direction is thereby crucial. In this work, a remarkable magnetic anisotropy field change up to 1572 Oe is achieved under a small operation voltage of 4 V through ionic liquid (IL) gating control of SRT in Au/[DEME]+[TFSI]−/Pt/(Co/Pt)2/Ta capacitor heterostructures at room temperature, corresponding to a large ME coefficient of 378 Oe V−1. As revealed by both ferromagnetic resonance measurements and magnetic domain evolution observation, the magnetization can be switched stably and reversibly between the out‐of‐plane and in‐plane directions via IL gating. The key mechanism, revealed by the first‐principles calculation, is that the IL gating process influences the interfacial spin–orbital coupling as well as net Rashba magnetic field between the Co and Pt layers, resulting in the modulation of the SRT and in‐plane/out‐of‐plane magnetization switching. This work demonstrates a unique IL‐gated PMA with large ME tunability and paves a way toward IL gating spintronic/electronic devices such as voltage tunable PMA memories.
