ACS Applied Materials & Interfaces

Ferroelectric Phase Transition Induced a Large FMR Tuning in Self-Assembled BaTiO3:Y3Fe5O12 Multiferroic Composites

Author Guohua Dong

G. Dong, Z. Zhou*, X. Xue, Y. Zhang, B. Peng, M. Guan, S. Zhao, Z. Hu, W. Ren, Z.-G. Ye, M. Liu*, “Ferroelectric phase transition induced a large FMR tuning in self-assembled BaTiO3:Y3Fe5O12 multiferroic composites” ACS Applied Materials & Interfaces ating Control of Interfacial Magnetism.</h3> Advanced Materials, 2017. DOI: 10.1002/adma.201606478

Keywords:BTO; magnetoelectric coupling; multiferroics; vertically aligned heterostructure; YIG

Full text

Abstract

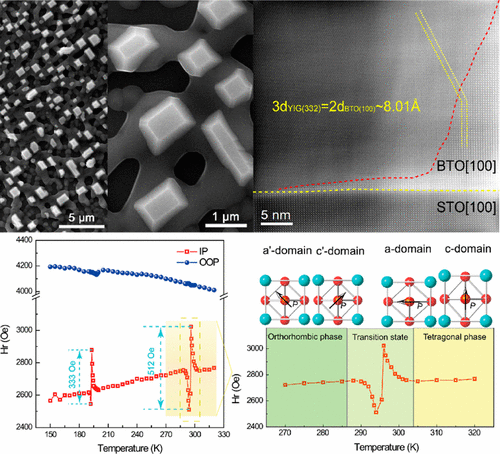

Yttrium iron garnet (YIG) is of great importance in RF/microwave devices for its low loss, low intrinsic damping, and high permeability. Nevertheless, tuning of YIG-based multiferroics is still a challenge due to its near-zero magnetostriction and the difficulty of building epitaxial interface between ferromagnetic garnet and ferroelectric perovskite phases. In this work, the vertically aligned heterostructure of YIG:BTO/STO(001) with local epitaxial interface between BTO and YIG is well-constructed, where the single crystal BTO pillars are embedded in YIG matrix. A large magnetoelectric coupling effect that drives YIG’s FMR shift up to 512 and 333 Oe (1–2 order greater than those of all state-of-the-art progresses) is obtained through BTO ferroelectric phase changes induced by temperature variation at 295 and 193 K, correspondingly. This record high magnetoelectric tunability of YIG paves a way toward thermal/electrical tunable YIG devices.
